AS-
|
Item NO. |
Specifictions |
|
AS-2203 |
AC 220V 3A |
|
AS-2206 |
AC 220V 6A |
|
AS-22010 |
AC 220V 10A |
|
AS-11003 |
AC 110V 3A |
|
AS-11006 |
AC 110V 6A |
|
AS-11010 |
AC 110V
10A |
ASO
|
Item NO. |
Specifictions |
|
ASO-2203 |
AC 220V 3A |
|
ASO-2206 |
AC 220V 6A |
|
ASO-22010 |
AC 220V 10A |
|
ASO-22015 |
AC 220V 15A |
|
ASO-11003 |
AC 110V 3A |
|
ASO-11006 |
AC 110V 6A |
|
ASO-11010 |
AC 110V 10A |
|
ASO-11015 |
AC 110V 15A |
APPLICATION
Street
light,Factory,Garden,Harbor,Airport,Farm,Pack,any other
place.
FEATURES:
Compact,reliable lighting controls consist
of hermetically sealed CDS
photocell and snap action bimetallic
relay to insure eletrical switching.

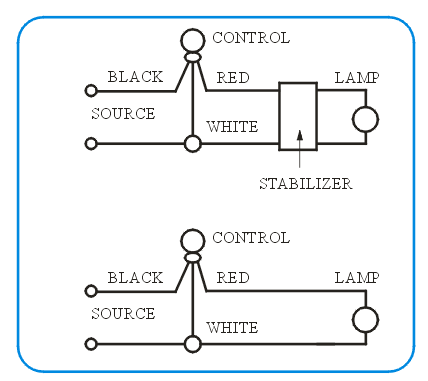

ELECTRICAL
CONNECTION:
At using for marcury or fluorescent lamp,connect
the control unit in the
primary side or stabilizet,connect
red-lead wire first for safety.
For incandesccennnt
lamp,connect black-lead (common)to power source,
rde=lead wire
and white lead to lamp load.
Photo-eelctic light control
